Unique Algorithm & Smart Cleaning
Shorten cycle time with smart single arm
Smart single arm conveying with a unique algorithm shortens cycle time. By standardizing the cleaning process platform, systems can be expanded and rearranged. Multi-processes are available with the mixture of aqueous/semi-aqueous and non-aqueous cleaning chemicals.
Smart single arm
- Synchronize with settings and optimize speed and positioning
- Simultaneous operations of multiple recipes available
- Sequence optimization with recipe management system
- Tag identification can be linked to recipe management system
- Equipped with collision and mishook prevention system
High speed vacuum pulse

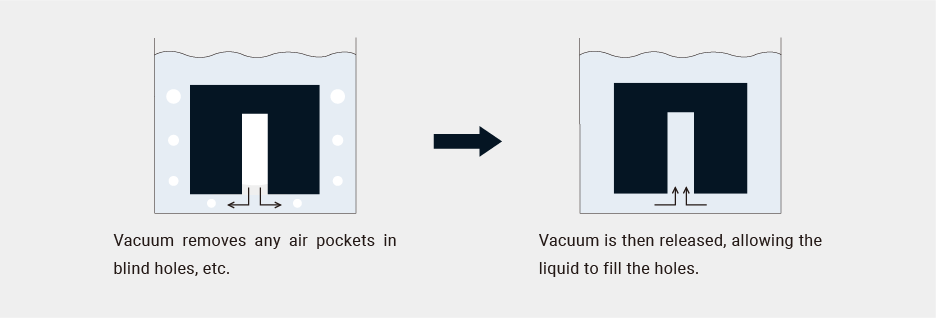

High speed vacuum pulse efficiently de-aerate blind and deep holes.
High speed vacuum pulse cleaning
- High precision deaeration
- Effectiveness ultrasonic cleaning
- Suitable for low & medium frequency range
- Reduces ultrasonic energy loss
High speed vacuum pulse drying
- Quick and uniform drying
- Effective in deep holes
- Plastics available thanks to low temp. drying
- Space saving
Standardized platform
| Model | Effective cleaning dimensions W×D×H (mm) | Cleaning tank dimensions W×D×H (mm) | Cleaning tank volume(L) |
|---|---|---|---|
| B40S01 | 310×310×160 | 400×440×260 | 46 |
| B40M06 | 310×370×250 | 400×500×350 | 70 |
| B40M07 | 310×420×350 | 400×550×450 | 99 |
| B40L02 | 310×330×500 | 400×460×600 | 110 |
