LAB FREEZE GRANULATOR – LS-6

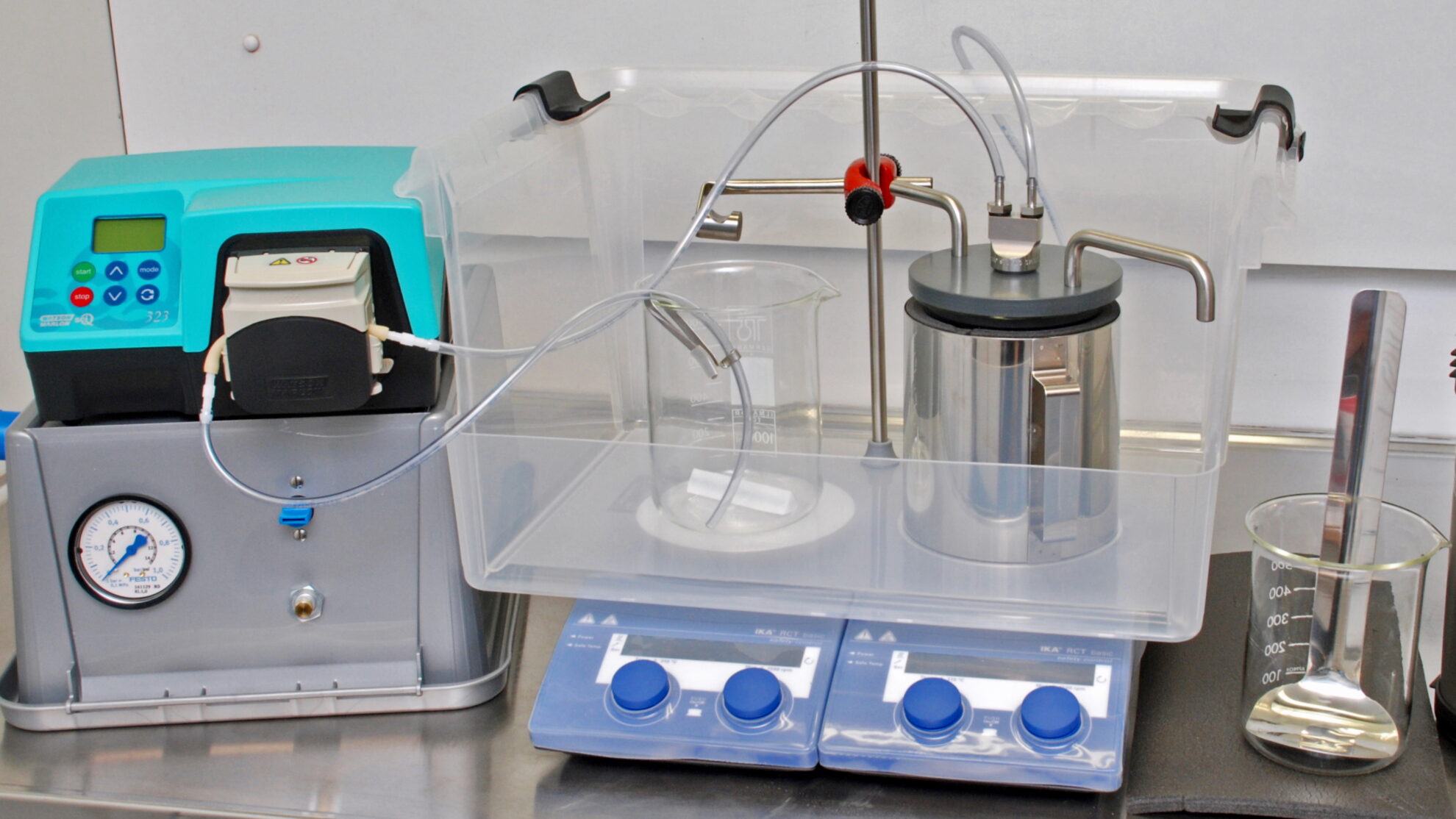

LS-6 is a lab-scale freeze granulator unit manufactured by PowderPro. A liquid mateial is atomized by a two-fluid nozzle into a container filled with liquid nitrogen. The frozen granules are deposited in the container and collected using a scoop, and manually placed to trays for freeze-drying. Freeze-drying is processed by storing trays in a multi-stage freeze dryer.
Specifications
| Model | LS-6 |
| Container diameter | φ120mm |
| Atomization system | Two-fluid nozzles |
| Material feed capacity | Up to 6kg/h |
| Cooling temperature | −196℃ |
| Cooling system | Wet cooling system by liquid nitrogen |
